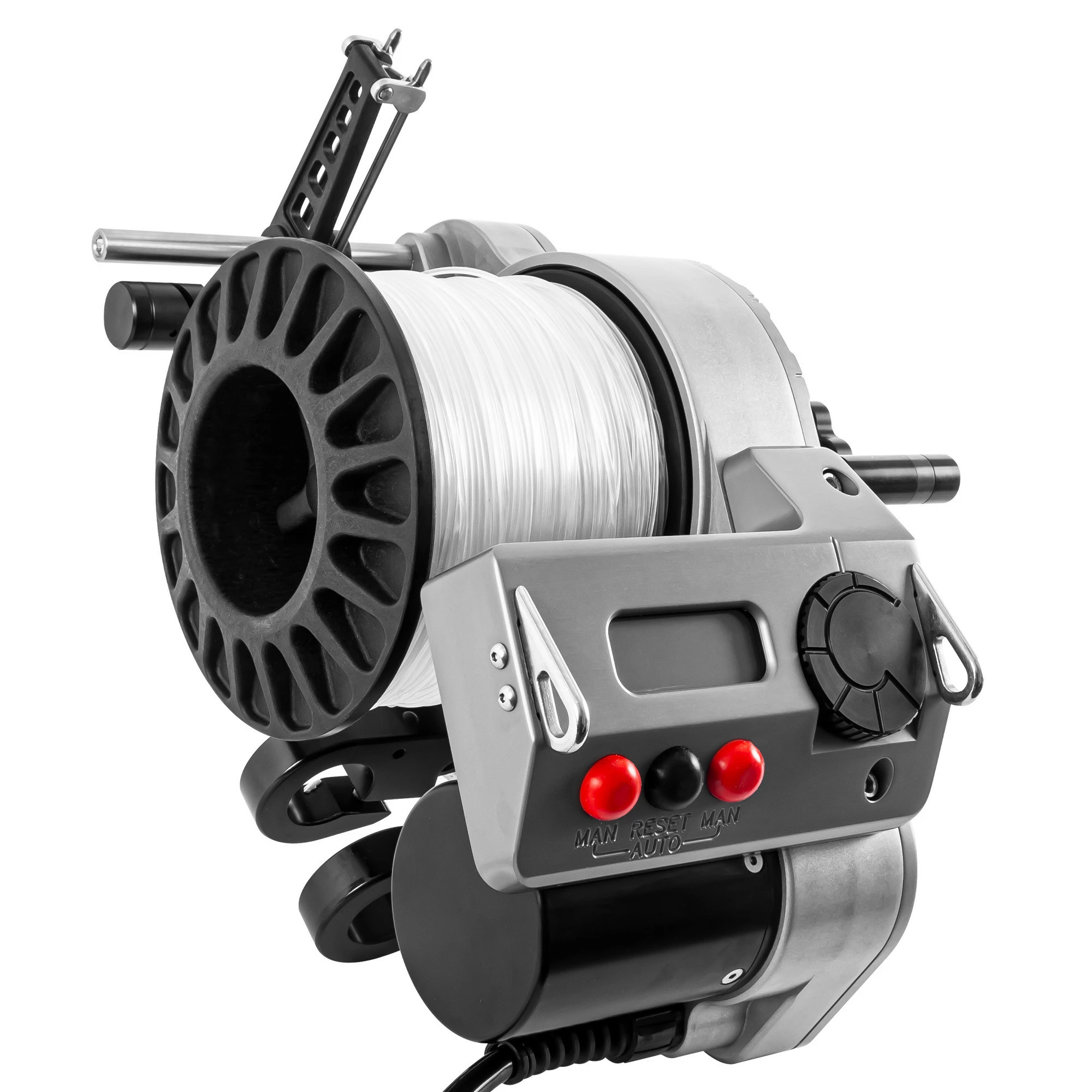

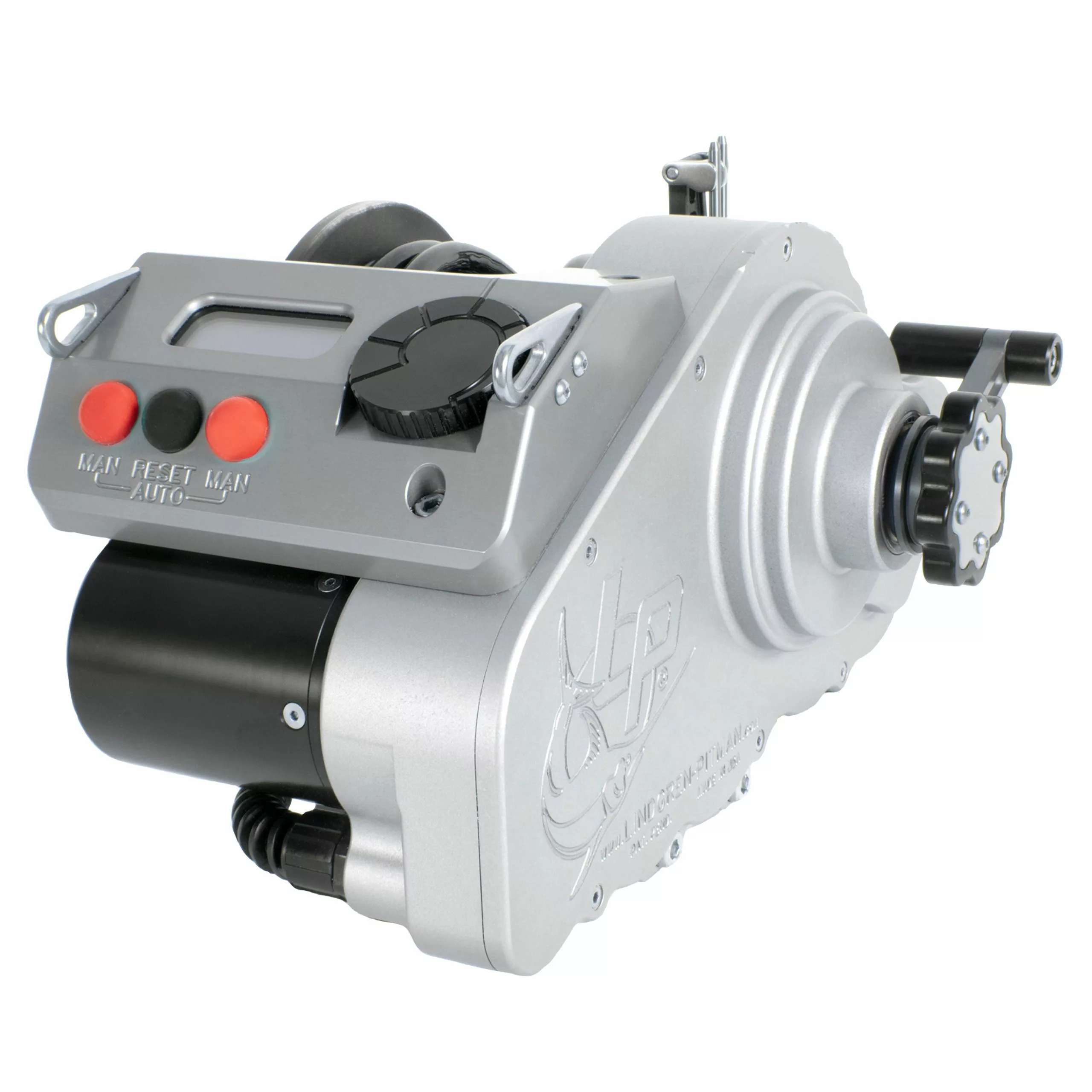

Lindgren-Pitman SV-1200 Electric Reels

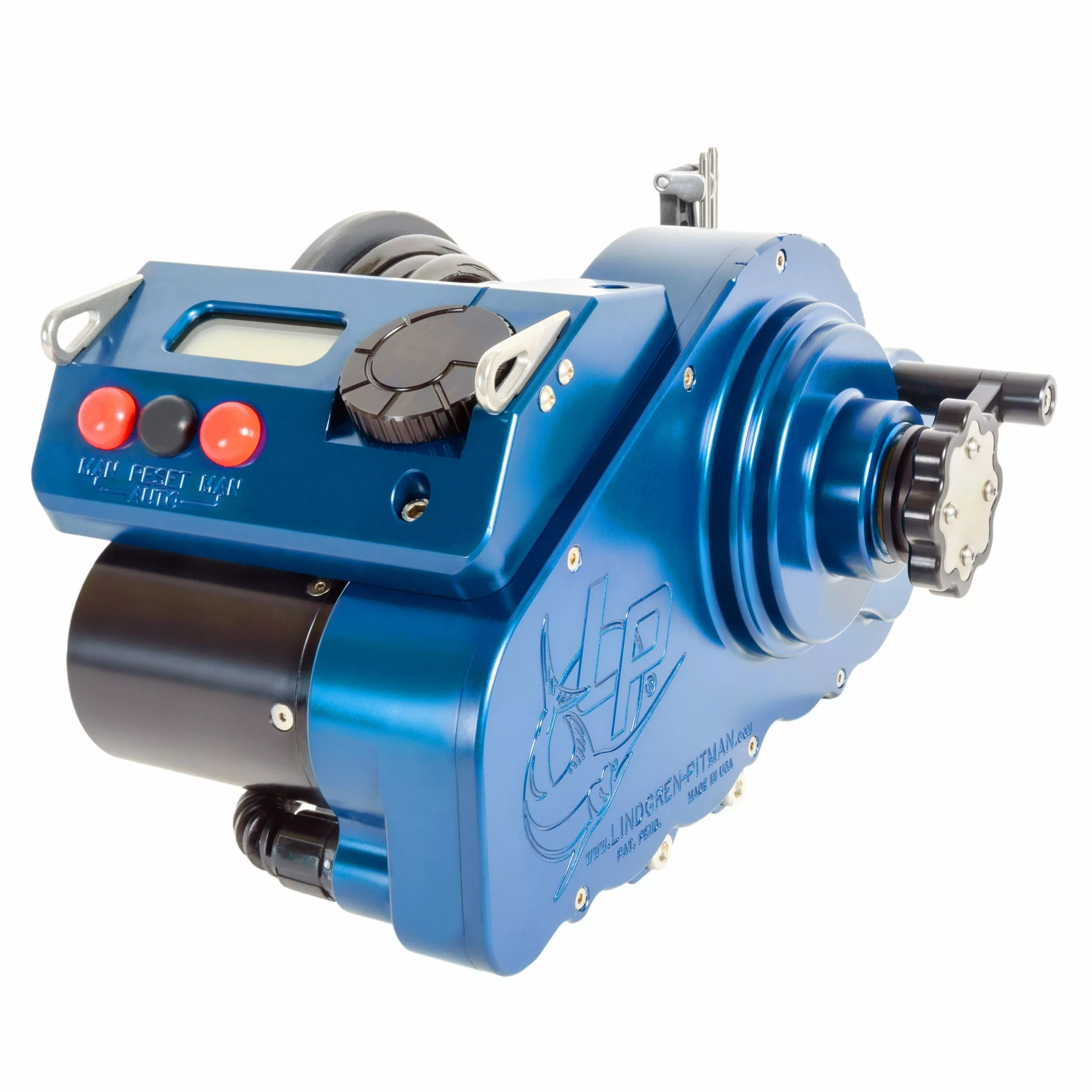

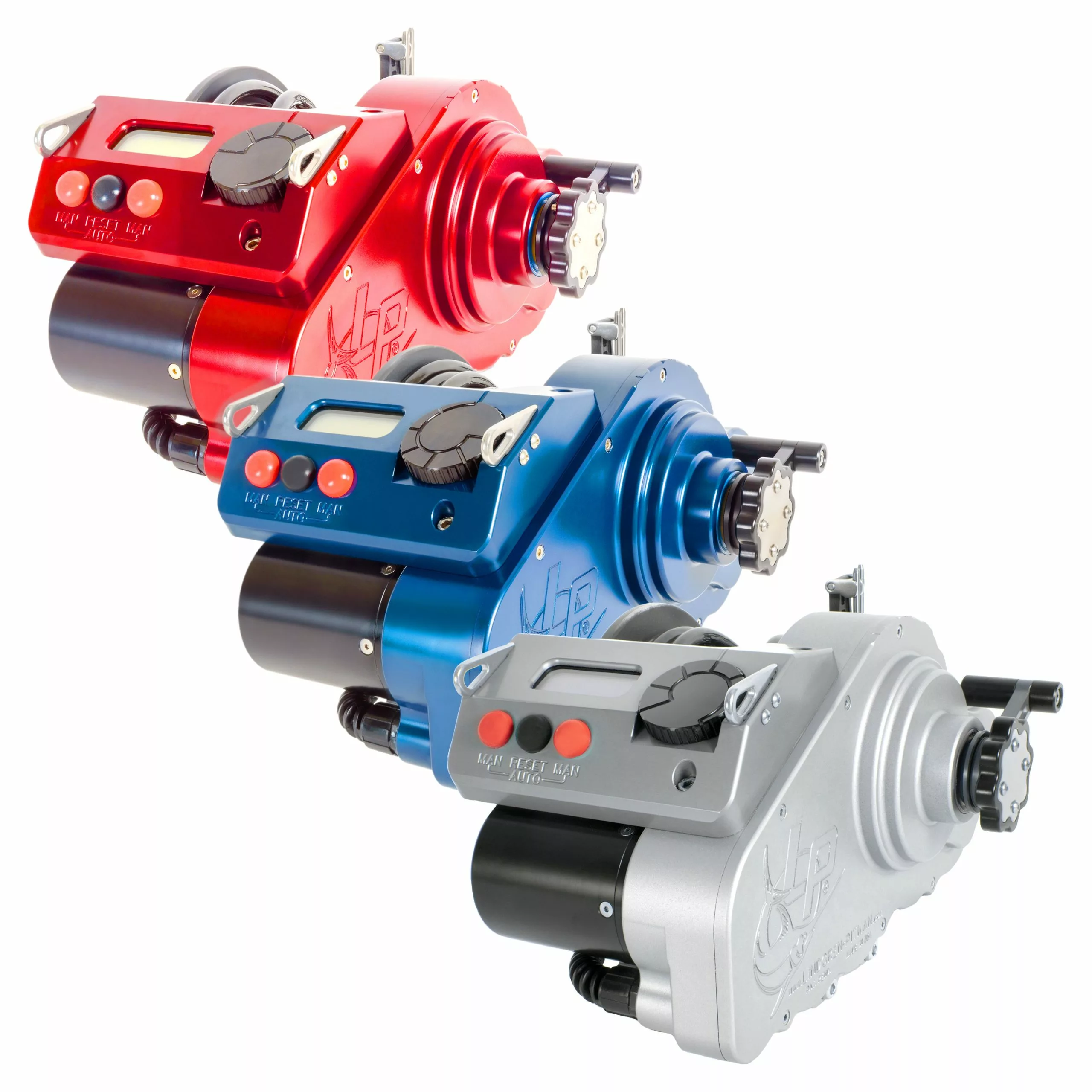

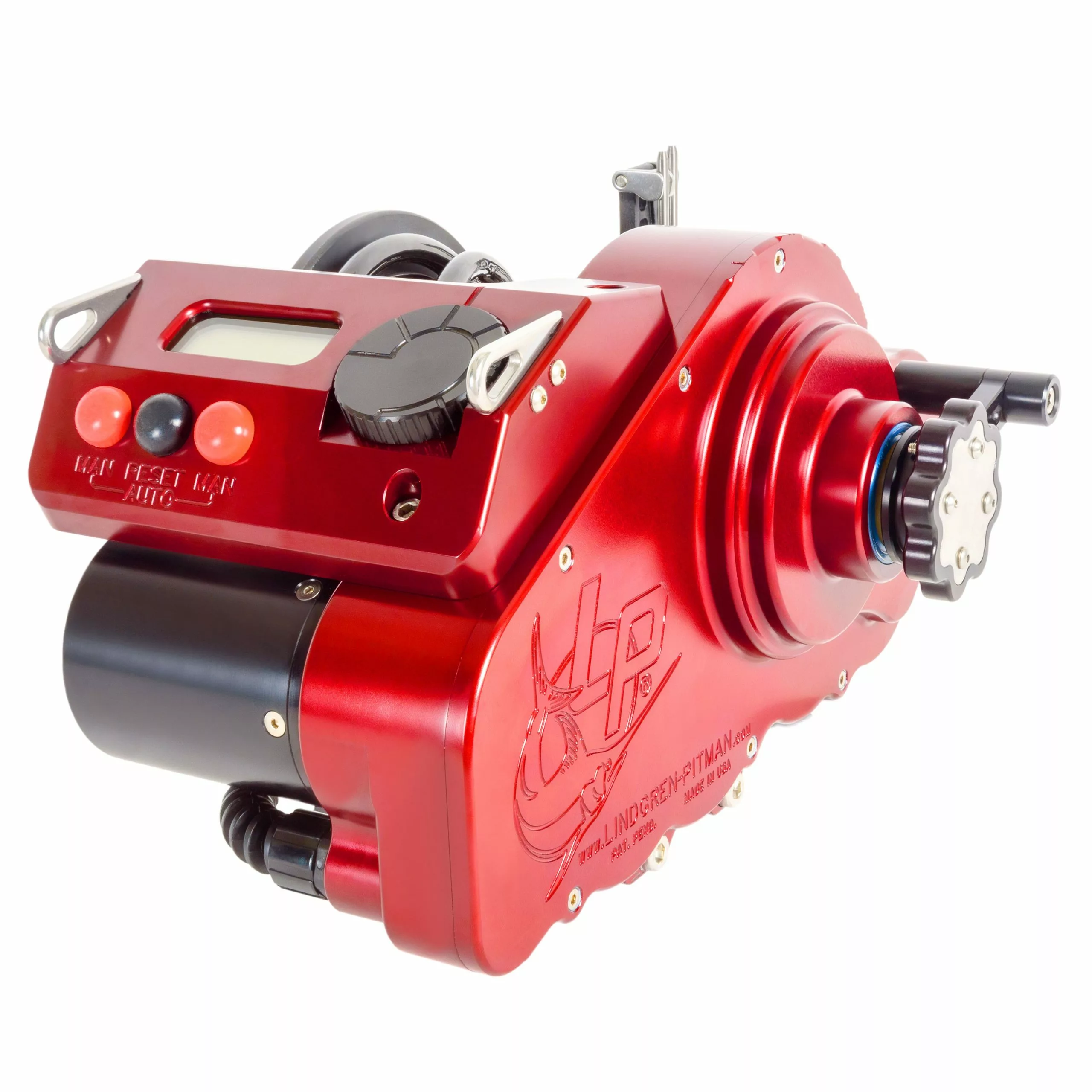

The Lindgren-Pitman SV-1200 Electric Reels are some of the best electric reels on the market, a high performance reel way ahead of the competition, and versatile enough for almost every fishing situation. From dredging to kite fishing, from tuna to swordfish, the SV-1200 is ready for the job. The SV-1200 features a high powered 12 volt direct current electric motor that is fully variable from 50 to 400 feet per minute while maintaining 110+ lbs. of pull at all speeds. The all new cantilever spool design allows for a completely sealed drive system, allowing for long, dependable, and maintenance free use. The surface is sealed with an anodizing process to prevent corrosion, now featuring two new colors, Billet Aluminum Blue, and Billet Aluminum Red.

Specs & Features

• Hard coat anodized billet aluminum construction
• Fully Variable Speed (50-400 Feet/min.)
• 110+ lbs. pull at all speeds
• Auto-Off under overload while automatically restarting with load reduction
• Stop at zero mode
• External Preset and Vernier Drag Control
• Smooth wide-span drag control
• Backlit Digital Line Counter
• Digital Clicker, Standard
• Brushless, Sensorless Motor
• Gear Driven level winder
• Factory Installed Quick Release Hub
• Interchangeable Spool Design

Why purchase the SV-1200 over other reels?

The Lindgren-Pitman SV-1200 has the strength and speed for a wide variety of fishing applications. The SV-1200 features 110+ lbs. of pull, capable enough for dredging and big game fishing. One of the unique aspects of the SV-1200 is the fully variable motor, allowing the angler to slow the speed to a crawl if necessary. Changing the speed depending on the situation gives the angler an advantage in every reeling situation, the SV-1200 enables the angler to make changes on the dot, the difference between making the catch or not.

The SV-1200 features other technological advancements, all designed to make your life easier, such as a backlit digital display, no need to worry about lighting in the late hours anymore. Another unique feature of the SV-1200, is the cantilever spool design, attaching the spool from only one side, allowing the angler to easily swap out spools when necessary. Last, but not least, the SV-1200 features a hardened, corrosion resistant finish and a sealed gear system, keeping maintenance of the SV-1200 to a minimum.

What is the SV-1200 made of?

The SV-1200 Reels are machined from billet aluminum, allowing for precise and sleek styling. Billet aluminum starts as a single piece of material that is machined into the specified shape. Billet is generally accepted as stronger than casting, casting requires extra processes, such as melting and cooling, that can negatively impact the composition of the metal, possibly leaving behind air pockets and inconsistencies, hindering the metal’s strength. After the frame is machined, the exterior is sanded to smooth out any irregularities, and then immersed into a pool of sulfuric acid while a low voltage electrical current is applied in a process called anodizing. This process will result in a coat of aluminum oxide forming on the surface, creating a strong, hard surface that is resistant to corrosion.

What are the Power Requirements?

The LP SV-1200 runs on a 12 Volt direct current system with a maximum capability of 30 Amps, and the unit includes a power cord with a Hubbell 328DCP style plug. A wiring kit will be need to be installed on your boat to power the SV-1200. Melton Tackle carries a couple different wiring kit options, available as an optional add-on below. There is the for a more permanent installation, or the that sports an inline fuse and and ring terminals for easy attachment.

WARNING:

• NEVER use a battery charger to run the SV-1200 as the power is not clean and it can damage the circuitry and void your warranty.
• Do NOT modify the SV-1200’s power cord in any way, doing so will void your warranty.

Mounting

The SV-1200 weighs in at approximately 22 pounds with an empty spool, so it is important to mind the load capabilities of your rod holders. It is recommended by Lindgren-Pitman that the rod holders be bracketed(back-plated) to the gunnel. Be sure to tether the reel to the boat in case the reel breaks free from the rod holder.

Warranty

The SV-1200 is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Lindgren-Pitman, Inc. will, at it’s sole option, repair or replace any component which failed in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alterations or repairs.

Included with purchase

• Charging Cord
• Instruction Manual
• Hex Y Wrench

Approximate Line Capacity

MM	Inches	Yards	Example
.5	.018	3000	2500yds. – 80lb. Braid
.8	.031	2000	1200yds. – 200lb. Braid
.9	.035	1500	1000yds. – 100lb.-test stainless steel line
1.0	.039	1200	100lb.-test monofilament
1.2	.047	880	2.2lbs. of 150-175lb.-test monofilament
1.4	.055	650	2.2lbs. of 225-250lb.-test monofilament
2.0	.079	250	2.0lbs. of 400lb.-test monofilament
